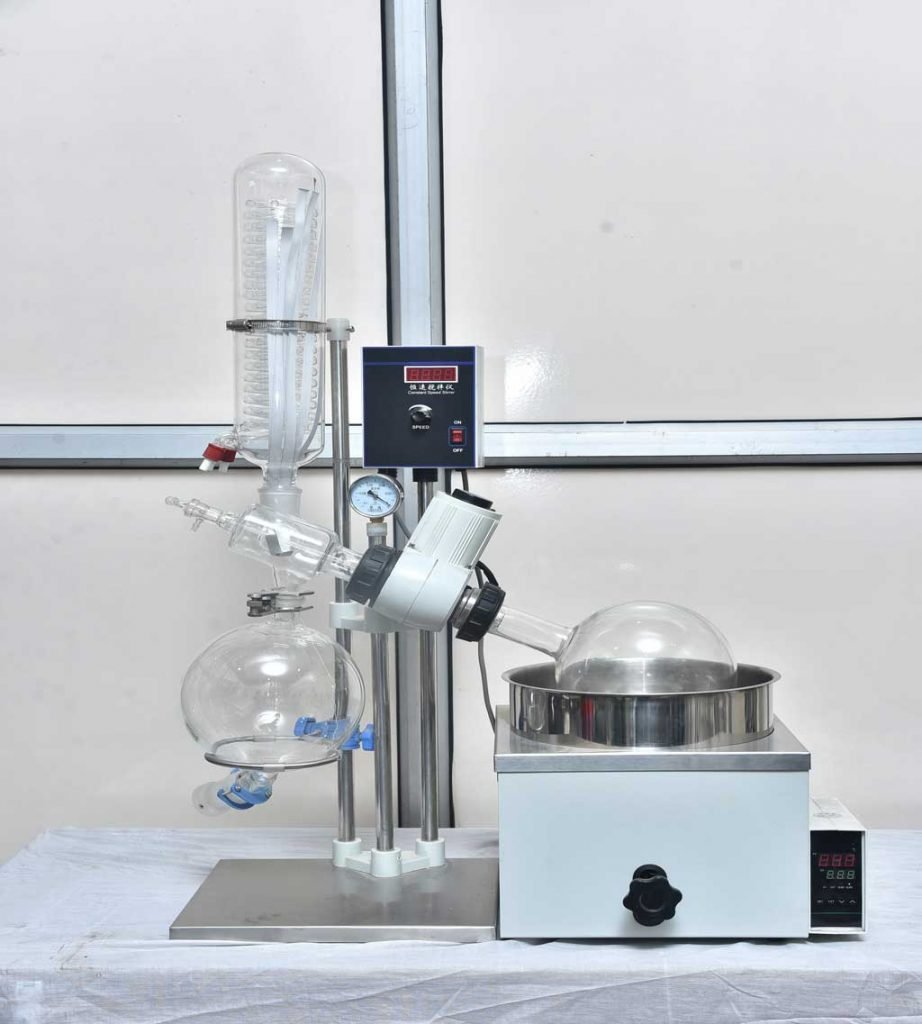

Rotary Evaporator
ATR ASAHI jointly with AG! Japan supply world’s largest Rotary Evaporator upto 200L. The rotary are designed for industrial and production use. The capacities available are in the steps of 10L/20L/30L/50L/100L & 200L.
The specifications are as follows:-
| Equipment description | Rotation flask 20L | Rotation flask 30L | Rotation flask 50L | Rotation flask 100L | Rotation flask 200L | ||||
| Model | RE1-20G-1HP | RE1-30G-1HP | RE1-50G-1HP | RE1-100G-1HP | RE-200G-1H | ||||
| Ascending | |||||||||
| Bath Lift | Hand Lift | Hand Lift | Hydraulic Lift | Hydraulic Lift | Hydraulic Lift | ||||
| Circulation Pump (for Shower) | Yes | Yes | Yes | Yes | Yes | ||||
| Dimension | 1110W*650D*2150H | 1515W*650D*2200H | 1940W*900D*2900H | 2050W*900D*2970H | 2355W*900D*3520H | ||||
| Condensate Area | 0.6 m2 | 1 m2 | 1.25 m2 | 2.3 m2 | 4.0 m2 | ||||
| Rotation Speed | 0 ~120 rpm | 0~120 rpm | 12~120 rpm | 12~120 rpm | 0~60 rpm | ||||
| Receiving flask | 10 L | 20 L | 20 L | 30 L | 50 L | ||||
| RPM indicator | Digital :20~90 (Water bath)/Digital : 20 ~200 ( Oil bath) | ||||||||
| Vacuum (Ultimate Pressure) | 133 Pa (1 torr) | 133 Pa (1 torr) | 133 Pa (1 torr) | 133 Pa (1 torr) | 667 Pa (5torr) | ||||
| Heater | Total 4 KW ( main 2 KW+sub 2 KW) | Total 4KW (main 2KW+ sub 2KW) | Total 10KW (main 5KW+ sub 5KW) | Total 12KW (main 6KW+ sub 6KW) | Total 12KW (main 6KW+ sub 6KW) | ||||
| Temp. Control | PID from main heater, ON/OFF control | ||||||||
| Overheat Cut-off Protection | Yes | ||||||||
| Power Source | AC200V 3 phase, 20A | AC200V 3 phase, 20A | AC200V 3 phase, 20A | AC200V 3 phase, 20A | AC200V 3 phase, 20A | ||||
10L Rotary Evaporator
| Equipment | Item Description |
| 10L Ascending condenser type | Rotation flask:10L Spherical |
| Receiver: 1 x 10L, Spherical | |
| Condenser : 0.6m2 | |
| Electric heater (water bath) | |
| Lift: Mechanical Lift | |
| Temp. control: digital | |
| Rotation Speed: MAX 120 rpm. | |
| Power supply: 415V ,3phase,50HZ | |
| Control Panel; FLP panel including temperature indicator, temperature controller & Evaporation flask Speed controller. | |
Support frame: SS 304 |
20L Rotary Evaporator
| Equipment | Item Description |
| 20L Ascending condenser type | Rotation flask:20L Spherical |
| Receiver: 1 x 10L, Spherical | |
| Condenser : 0.6m2 | |
| Electric heater (water bath) | |
| Lift: Mechanical Lift | |
| Temperature control: digital | |
| Rotation Speed: MAX 120 rpm. | |
| Power supply: 415V ,3phase,50HZ | |
| Control Panel; Flp panel including temperature indicator, temperature controller & Evaporation flask Speed controller. | |
Support frame: SS 304 |
Product Video
Rotary Evaporator
Rotary Evaporator
ATR ASAHI jointly with AG! Japan supply world’s largest Rotary Evaporator upto 200L. The rotary are designed for industrial and production use. The capacities available are in the steps of 10L/20L/30L/50L/100L & 200L.
The specifications are as follows:-
| Equipment description | Rotation flask 20L | Rotation flask 30L | Rotation flask 50L | Rotation flask 100L | Rotation flask 200L | ||||
| Model | RE1-20G-1HP | RE1-30G-1HP | RE1-50G-1HP | RE1-100G-1HP | RE-200G-1H | ||||
| Ascending | |||||||||
| Bath Lift | Hand Lift | Hand Lift | Hydraulic Lift | Hydraulic Lift | Hydraulic Lift | ||||
| Circulation Pump (for Shower) | Yes | Yes | Yes | Yes | Yes | ||||
| Dimension | 1110W*650D*2150H | 1515W*650D*2200H | 1940W*900D*2900H | 2050W*900D*2970H | 2355W*900D*3520H | ||||
| Condensate Area | 0.6 m2 | 1 m2 | 1.25 m2 | 2.3 m2 | 4.0 m2 | ||||
| Rotation Speed | 0 ~120 rpm | 0~120 rpm | 12~120 rpm | 12~120 rpm | 0~60 rpm | ||||
| Receiving flask | 10 L | 20 L | 20 L | 30 L | 50 L | ||||
| RPM indicator | Digital :20~90 (Water bath)/Digital : 20 ~200 ( Oil bath) | ||||||||
| Vacuum (Ultimate Pressure) | 133 Pa (1 torr) | 133 Pa (1 torr) | 133 Pa (1 torr) | 133 Pa (1 torr) | 667 Pa (5torr) | ||||
| Heater | Total 4 KW ( main 2 KW+sub 2 KW) | Total 4KW (main 2KW+ sub 2KW) | Total 10KW (main 5KW+ sub 5KW) | Total 12KW (main 6KW+ sub 6KW) | Total 12KW (main 6KW+ sub 6KW) | ||||
| Temp. Control | PID from main heater, ON/OFF control | ||||||||
| Overheat Cut-off Protection | Yes | ||||||||
| Power Source | AC200V 3 phase, 20A | AC200V 3 phase, 20A | AC200V 3 phase, 20A | AC200V 3 phase, 20A | AC200V 3 phase, 20A | ||||
Connect with us for custom glass equipment solutions.
10L Rotary Evaporator
| Equipment | Item Description |
| 10L Ascending condenser type | Rotation flask:10L Spherical |
| Receiver: 1 x 10L, Spherical | |
| Condenser : 0.6m2 | |
| Electric heater (water bath) | |
| Lift: Mechanical Lift | |
| Temp. control: digital | |
| Rotation Speed: MAX 120 rpm. | |
| Power supply: 415V ,3phase,50HZ | |
| Control Panel; FLP panel including temperature indicator, temperature controller & Evaporation flask Speed controller. | |
Support frame: SS 304 |
20L Rotary Evaporator
| Equipment | Item Description |
| 20L Ascending condenser type | Rotation flask:20L Spherical |
| Receiver: 1 x 10L, Spherical | |
| Condenser : 0.6m2 | |
| Electric heater (water bath) | |
| Lift: Mechanical Lift | |
| Temperature control: digital | |
| Rotation Speed: MAX 120 rpm. | |
| Power supply: 415V ,3phase,50HZ | |
| Control Panel; Flp panel including temperature indicator, temperature controller & Evaporation flask Speed controller. | |
Support frame: SS 304 |
